Devil 40'

Specifications

LOA (Length Overall)
39' 9"
Beam
14' 4"
Draft
3' 6"
Fuel Capacity
600 gal
Water Capacity
75 gal
Displacement (Wet)
29,000 lb

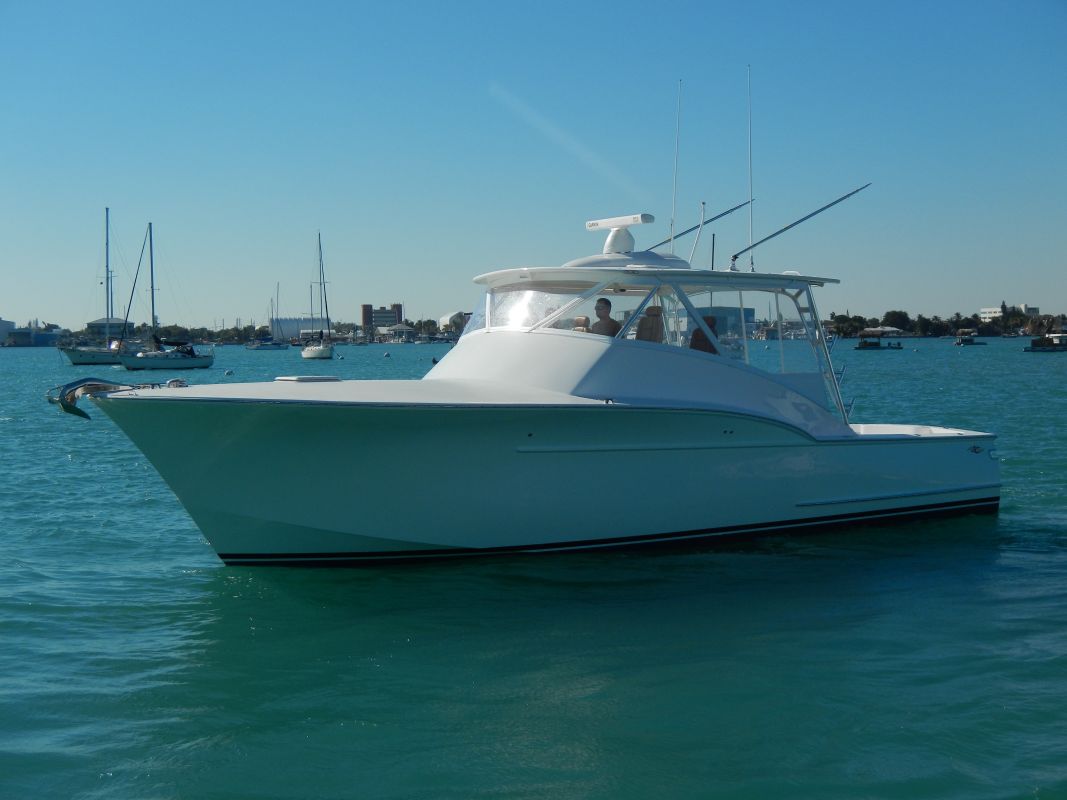

The 40' Devil is available in a Hardtop and Flybridge configuration.

Standard Equipment

Construction

  • Anchor, anchor chain (8 ft.) anchor line (300 ft.)
  • Anti-fouling bottom paint
  • Awlgrip engine room
  • Custom aluminum engine room deck
  • Molded hand-laid fiberglass construction with premium quality resin and bi-axial fabrics, vinyl ester skin coats and white gelcoat finish.
  • Lamination below waterline is solid fiberglass

Mechanical

  • Acoustical and thermal insulation
  • Air Conditioning– Reverse cycle
  • Auto/Manual fire extinguishing system
  • Bilge pumps w/ high water alarm (3)
  • Custom engineered motor mounts
  • Custom liner mufflers
  • Engine/bilge blowers (2)
  • Diesel Engines (fresh water cooled)
  • Dockside water with pressure valve
  • Dripless shaft logs
  • Electronic clutch and throttle controls
  • Engine synchronizer
  • External sea water strainers
  • Freshwater spigot in engine room
  • Fuel lines– Flexible aircraft type with cross-over-
  • shutoffs
  • Fuel tanks–Welded aluminum
  • Fuel filters– Engines and generator
  • Generator—9KW (fresh water cooled)
  • Hydraulic steering
  • Oil change system– Engines/gen/trans
  • Propellers– High performance
  • Propellers shafts, aquamet
  • Rudders
  • Seacocks on all underwater thru hull fittings
  • Struts
  • Trim tabs (recessed)
  • Water heater
  • Water system, Heavy duty, pressurized

Electrical

  • Anchor/mast light
  • Batteries– Heavy duty w/ fiberglass box (3)
  • Battery charger
  • Battery disconnect switches
  • Battery paralleling
  • Color coded harnessed wiring system
  • Custom split AC/DC electric panel with
  • breakers and back lighting
  • Diesel generator
  • Dyno-plate, grounded
  • Engine room lighting (DC and 120VAC)
  • Horns– dual
  • Internal bonding system
  • Shore power with 50’ cord
  • Transom, shaft and rudder zincs

Cockpit

  • Cockpit indirect lighting
  • Custom forward deck sealed anchor locker
  • Dockside TV and phone connections
  • Dockside water and electrical connections
  • Integral aluminum plate for mounting of fighting
  • chair
  • Fish box insulated with macerator
  • In-deck fish box with macerator pump
  • Live Baitwell with re-circulation pump
  • Rod holders (4), flush mount
  • Wash downs, salt and freshwater

Head

  • Designer counter tops, sinks, and faucets
  • Duplex outlets (120VAC—GFI) Electric head
  • Enclosed shower with automatic sump pumps
  • Exhaust fan
  • Lighting
  • Linen Storage
  • Medicine cabinet with mirror

Devil 40' Options

Engines

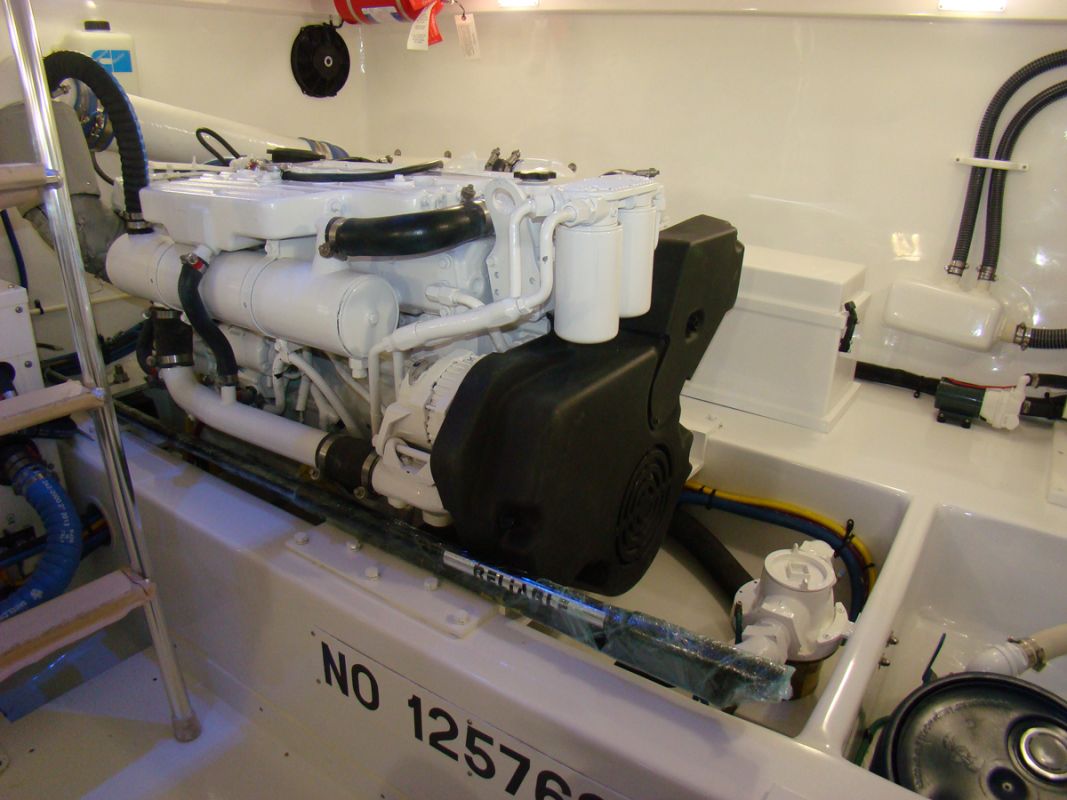

  • Cummins QSB 6.7 (550 hp) – standard power
  • CAT C-12 ( 710 hp)
  • MAN (800 hp)
  • MAN (900 hp)
  • YANMAR (715 hp)
  • YANMAR (900 hp)

Options

  • Anchor chain
  • Fresh water wash down
  • Bridge deck air conditioning
  • Cockpit speakers
  • Companion helm chairs
  • Teak or Stidd® Custom cabin side hand rails
  • Custom hull color
  • Custom teak pod gauge package
  • Electric reel outlet in cockpit (2)
  • Glendinning back up control unit
  • Padded coaming
  • Power assisted steering
  • Pulpit with stainless steel anchor chute and roller
  • Teak bridge deck
  • Teak cockpit
  • Teak covering boards
  • Teak pulpit to match toe rail
  • Teak toe rail
  • Teak transom
  • Trolling Valves Rod holders in cover boards (4)

Tournament Package

Tuna Tower: includes polished aluminum pipe with hard top, molded standing platform with radar box, tower sunshade, control box, glendinning controls and steering, outriggers and center rigger, 6 rod holders on hard top and 4 on tower legs. Costa® custom enclosure and tackle storage drawers and Release® teak helm chair with 4” stainless no-bolt pedestal, no-rock slide, custom tapered cushions and cover

Due to our continual effort to improve our product, Jersey Cape reserves the right to change standard or optional equipment and pricing at anytime with out notice. Some features and items shown in photographs and illustrations are optional. Speeds, weights and measures may vary with conditions and options.
